Intel Arc Pro B70

Workstation GPUIntel

Also called intel arc pro b70

IntelWorkstation GPUXe2

Intel Arc Pro workstation graphics card on Xe2, with 32 GB GDDR6 at 230 W board power on a 5 nm process.

What you need to know

Still a strong 1440p desktop GPU.

Intel Arc Pro B70 launched in January 1, 2026. 32 GB GDDR6 is the frame buffer on the reference sheet. It is no longer the newest card in every store, but it remains useful when the CPU and the rest of the PC keep up.

Still good?: Yes, especially at 1440p
Product age: Less than a year old
Upgrade pressure: Low

Feex says

If games feel slow on this card, I would check the CPU, RAM, and the driver before I shop for the next series.

What this hardware means today

Age and usefulness are not the same number. This page keeps them separate.

Performance today: Very Good. Still strong for 1440p and creator work when the rest of the PC keeps up.
Product age 0 years old: Current generation. Launched January 1, 2026. Newer series exist. That does not make this card unusable by itself.
Support status: Supported. Driver support depends on the vendor package for this generation.
Upgrade pressure: Low. Upgrade pressure comes from native 4K, VRAM-heavy titles, or wanting current-generation features.

Where does it sit?

Xe2 sits in its vendor generation. Board partners still pick the cooler.

Xe2

Performance context

These are qualitative readings, not a fake 8.7 out of 10. Resolution, settings, and the CPU still win.

1080p gaming: Excellent

More GPU than most 1080p setups need if this card is in the current or previous generation.

1440p gaming: Very Good

This is the job many desktop cards in this class were sold for.

4K gaming: Good

Native 4K is where memory size and the memory bus show up. Upscaling changes the picture.

Creator work: Very Good

GPU acceleration in apps is real. Large timelines still want more VRAM than a thin card has.

Efficiency: Good

The sheet lists 230 W board power. Partner cards can differ.

Should you upgrade?

Probably not if this card already matches your resolution.

Upgrade makes more sense if

Current games are GPU-bound at your resolution and settings
Current games are GPU-bound at your resolution and settings
You need current-generation features this card does not have
Your present GPU is a much older generation and this would be a real step up

Upgrade makes less sense if

You already play at a resolution this card can feed
The CPU, RAM, or storage is what actually stalls the machine
You are shopping for a newer card in the same class to fix a software or driver problem

Specifications

Figures below follow Intel's public reference sheet. Partner cards can raise clocks and change coolers, connectors, and outputs. The Feex Hardware Database fills fields the vendor page does not publish. Fields without a recorded value are omitted.

Graphics processor

Intel Arc Pro B70 is built on Xe2 using a 5 nm process.

Intel Arc Pro B70 specifications: Graphics processor
Manufacturer	Intel
Family	Arc Pro
Architecture	Xe2
GPU	Products formerly Battlemage
Manufacturing process	5 nm
Integrated	No
Mobile	No
Workstation	No
Segment	Workstation

Shader configuration

Intel Arc Pro B70 lists 4096 shading units on this sheet.

Intel Arc Pro B70 specifications: Shader configuration
Shading units	4096
Compute units	32
Texture mapping units	256
Render output units	128
Ray tracing cores	32
Tensor / AI cores	256
XMX engines	256

Clock speeds

Base clock is 2.28 GHz. Boost reaches 2.8 GHz.

Intel Arc Pro B70 specifications: Clock speeds
Base clock	2.28 GHz
Boost clock	2.8 GHz

Memory

Intel Arc Pro B70 addresses 32 GB.

Intel Arc Pro B70 specifications: Memory
Memory type	GDDR6
Memory size	32 GB
Memory interface	256-bit
Memory bandwidth	608 GB/s
Memory clock	2.38 GHz

Power and board

Intel Arc Pro B70 lists 230 W board power.

Intel Arc Pro B70 specifications: Power and board
Board power	230 W
Bus	PCIe 5.0 x16

Market

Intel Arc Pro B70 launched January 1, 2026.

Intel Arc Pro B70 specifications: Market
Launch date	January 1, 2026

Independent scores

These are third-party benchmark figures stored in the Feex Hardware Database. They are not Feex measurements.

Intel Arc Pro B70 specifications: Independent scores
PassMark G3D	18,932 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement.
PassMark G2D	739 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement.

Compatibility

Compatibility
Slot	PCIe 5.0 x16
Power	230 W on the sheet. The power plug is a partner-card detail.
Case	Length, thickness, and slot count vary by partner cooler. Measure the case, not the SKU name.

The SKU name is not a cooler, a length, or a power plug. Read the exact partner card before you buy or install.

Seat power connectors fully. A loose high-power plug can overheat. That is a connector problem, not a reason to assume the GPU is dead.

Driver packages from a previous GPU are a common crash source. Clean-install the current vendor package before you replace hardware.

No display after install

Plug the monitor into the GPU outputs, not the motherboard, unless this is an integrated part. A black screen with fans spinning is often a power plug, a seated PCIe card, or the display cable.

Driver installs, then games crash

Use the vendor package that matches this generation. A leftover driver from a previous GPU is a common cause.

Sources and verification

Reviewed by Feex editorial. Last verified August 2026 Status: Partially Verified. How we research.

Intel specifications · Primary specification source
Feex Hardware Database · Secondary specification source. CC BY 4.0.
PassMark Videocard Benchmark · Independent benchmark. Not a Feex measurement.

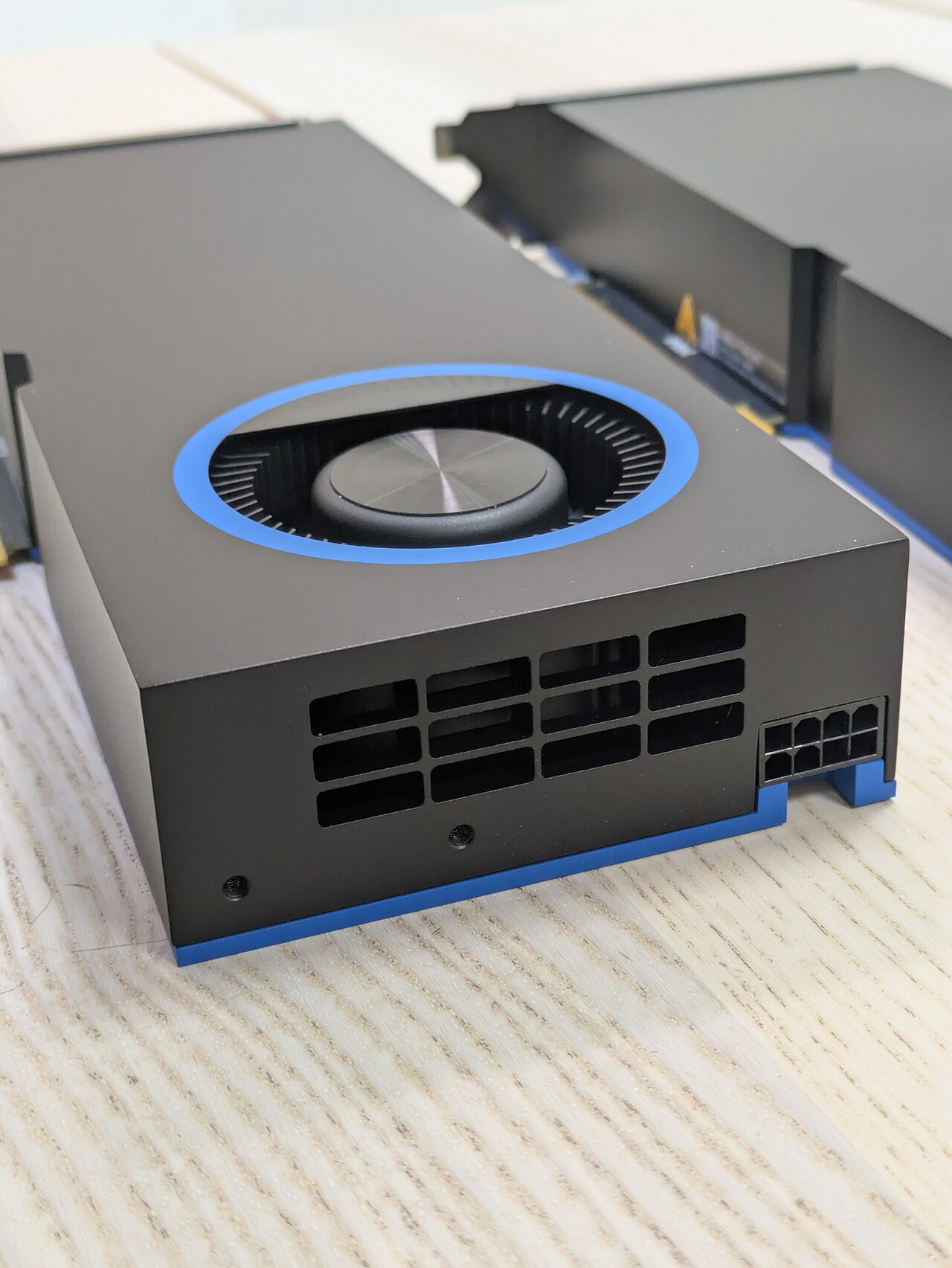

Photo: Biggo Finance · CC BY-SA 4.0
