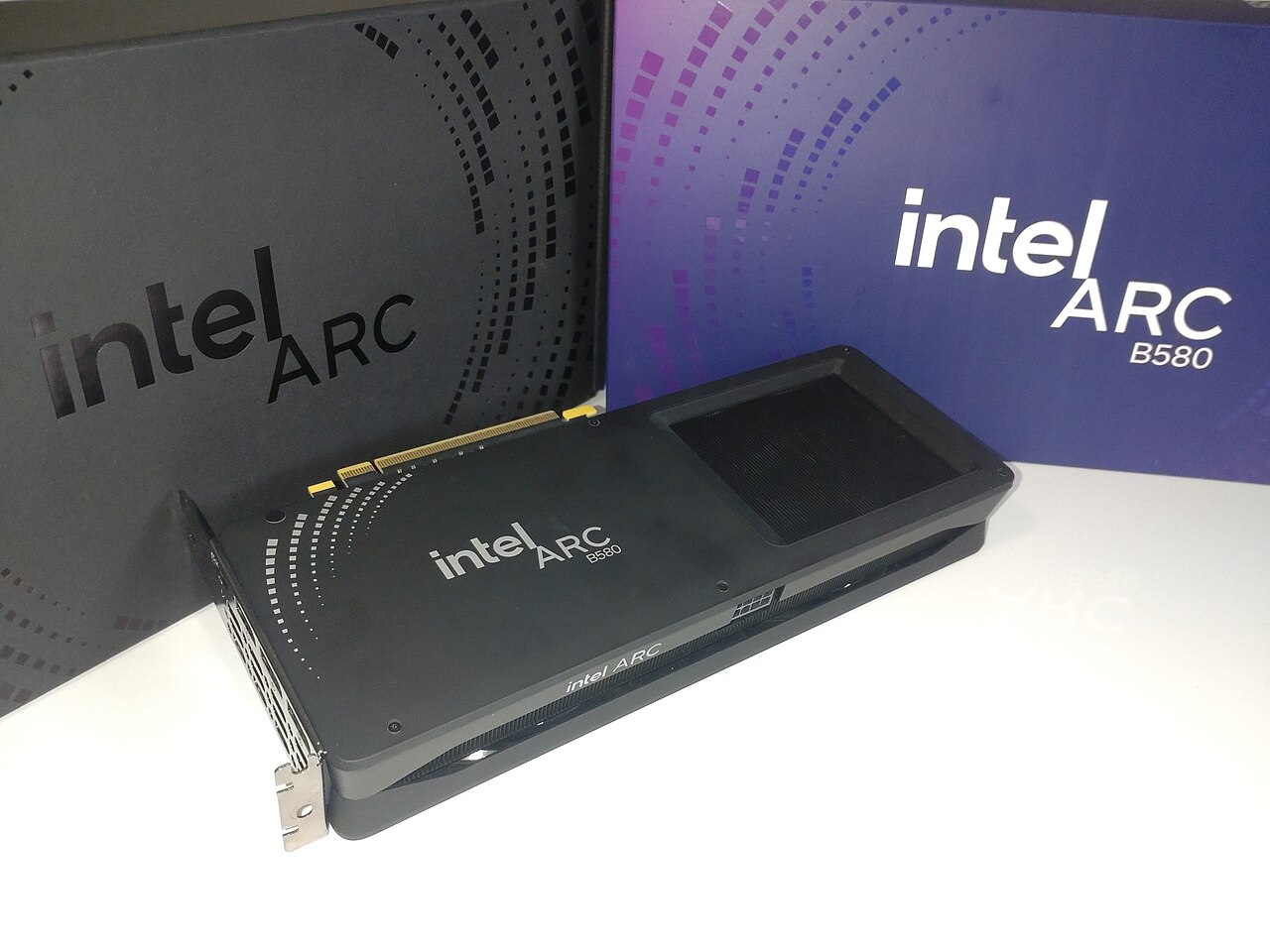

Intel Arc B580
Also called intel arc b580
Intel Arc desktop graphics card on Xe2, with 12 GB GDDR6 at 190 W board power on a 5 nm process.
What you need to know
Still a strong 1440p desktop GPU.
Intel Arc B580 launched in October 1, 2024. 12 GB GDDR6 is the frame buffer on the reference sheet. It is no longer the newest card in every store, but it remains useful when the CPU and the rest of the PC keep up.
- Still good?
- Yes, especially at 1440p
- Product age
- 1 year old
- Upgrade pressure
- Low
What this hardware means today
Age and usefulness are not the same number. This page keeps them separate.
- Performance today
- Very Good. Still strong for 1440p and creator work when the rest of the PC keeps up.
- Product age 1 year old
- Current generation. Launched October 1, 2024. Newer series exist. That does not make this card unusable by itself.
- Support status
- Supported. Driver support depends on the vendor package for this generation.
- Upgrade pressure
- Low. Upgrade pressure comes from native 4K, VRAM-heavy titles, or wanting current-generation features.
Where does it sit?
Xe2 sits in its vendor generation. Board partners still pick the cooler.
Performance context
These are qualitative readings, not a fake 8.7 out of 10. Resolution, settings, and the CPU still win.
1080p gaming: Excellent
More GPU than most 1080p setups need if this card is in the current or previous generation.
1440p gaming: Very Good
This is the job many desktop cards in this class were sold for.
4K gaming: Limited
Native 4K is where memory size and the memory bus show up. Upscaling changes the picture.
Creator work: Very Good
GPU acceleration in apps is real. Large timelines still want more VRAM than a thin card has.
Efficiency: Excellent
The sheet lists 190 W board power. Partner cards can differ.
Should you upgrade?
Probably not if this card already matches your resolution.
Upgrade makes more sense if
- You play at native 4K and the frame buffer is the limit
- Current games are GPU-bound at your resolution and settings
- You need current-generation features this card does not have
- Your present GPU is a much older generation and this would be a real step up
Upgrade makes less sense if
- You already play at a resolution this card can feed
- The CPU, RAM, or storage is what actually stalls the machine
- You are shopping for a newer card in the same class to fix a software or driver problem
Specifications
Figures below follow Intel's public reference sheet. Partner cards can raise clocks and change coolers, connectors, and outputs. The Feex Hardware Database fills fields the vendor page does not publish. Fields without a recorded value are omitted.
Graphics processor
Intel Arc B580 is built on Xe2 using a 5 nm process.
| Manufacturer | Intel |
|---|---|
| Family | Arc |
| Architecture | Xe2 |
| GPU | Products formerly Battlemage |
| Manufacturing process | 5 nm |
| Transistors | 19,600 million |
| Die size | 272 mm² |
| Integrated | No |
| Mobile | No |
| Workstation | No |
| Segment | Desktop |
Shader configuration
Intel Arc B580 lists 2560 shading units on this sheet.
| Shading units | 2560 |
|---|---|
| Compute units | 20 |
| Texture mapping units | 160 |
| Render output units | 80 |
| Ray tracing cores | 20 |
| Tensor / AI cores | 160 |
| XMX engines | 160 |
Clock speeds
Base clock is 2.67 GHz. Boost reaches 2.67 GHz.
| Base clock | 2.67 GHz |
|---|---|
| Boost clock | 2.67 GHz |
Memory
Intel Arc B580 addresses 12 GB.
| Memory type | GDDR6 |
|---|---|
| Memory size | 12 GB |
| Memory interface | 192-bit |
| Memory bandwidth | 456 GB/s |
| Memory clock | 2.38 GHz |
Power and board
Intel Arc B580 lists 190 W board power.
| Board power | 190 W |
|---|---|
| Recommended system power | 600 W (vendor system guidance) |
| Bus | PCIe 4.0 x8 |
Market
Intel Arc B580 launched October 1, 2024.
| Launch date | October 1, 2024 |
|---|
Independent scores
These are third-party benchmark figures stored in the Feex Hardware Database. They are not Feex measurements.
| PassMark G3D | 16,027 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement. |
|---|---|
| PassMark G2D | 703 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement. |
Compatibility
| Slot | PCIe 4.0 x8 |
|---|---|
| Power | 190 W on the sheet. The power plug is a partner-card detail. |
| Case | Length, thickness, and slot count vary by partner cooler. Measure the case, not the SKU name. |
| PSU | 600 W (vendor system guidance) |
The SKU name is not a cooler, a length, or a power plug. Read the exact partner card before you buy or install.
Seat power connectors fully. A loose high-power plug can overheat. That is a connector problem, not a reason to assume the GPU is dead.
Driver packages from a previous GPU are a common crash source. Clean-install the current vendor package before you replace hardware.
No display after install
Plug the monitor into the GPU outputs, not the motherboard, unless this is an integrated part. A black screen with fans spinning is often a power plug, a seated PCIe card, or the display cable.
Driver installs, then games crash
Use the vendor package that matches this generation. A leftover driver from a previous GPU is a common cause.
