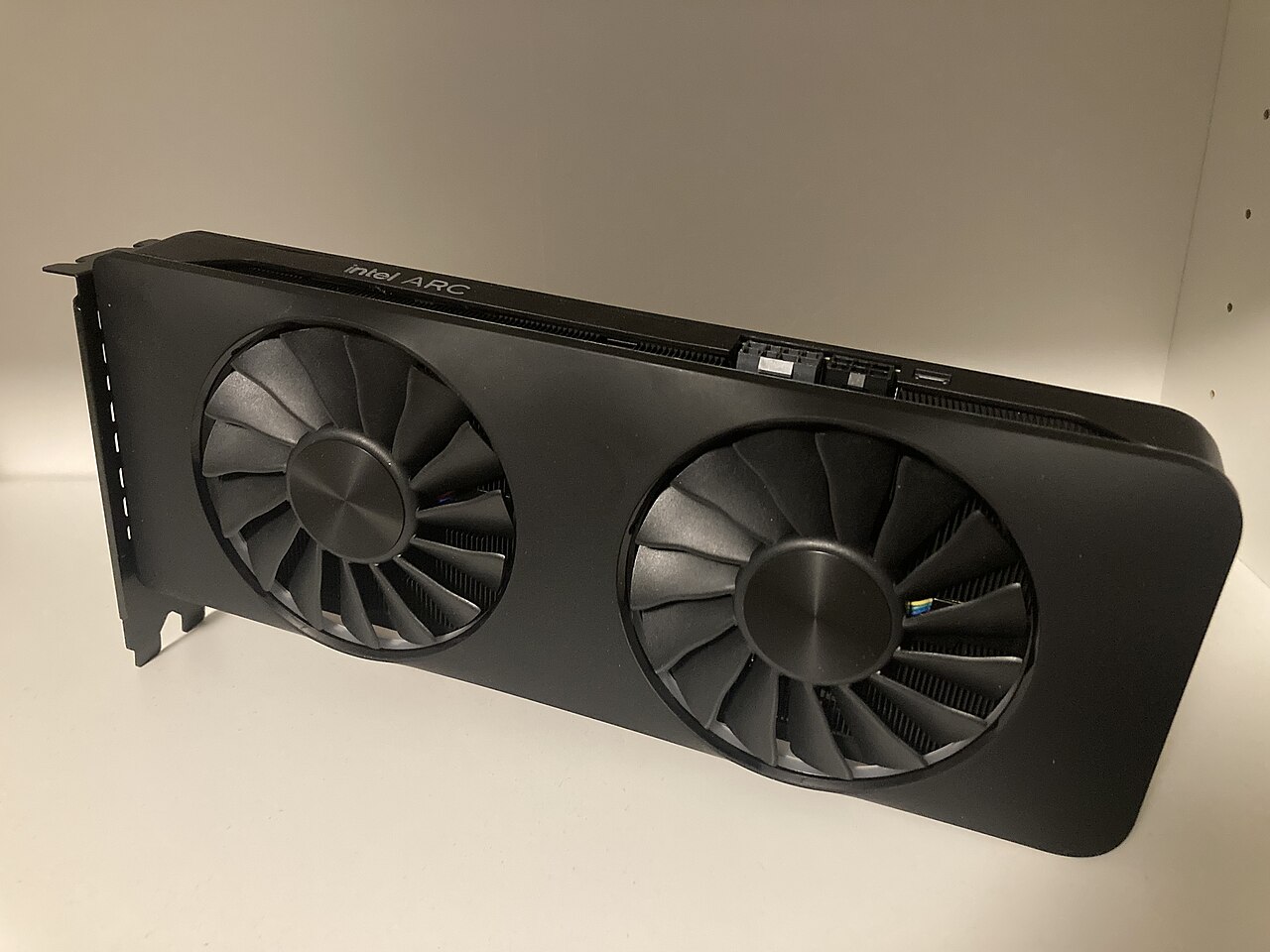

Intel Arc A770

Desktop GPUIntel

Also called intel arc a770

IntelDesktop GPUXe-HPG

Intel Arc desktop graphics card on Xe-HPG, with 16 GB GDDR6 at 225 W board power on a 6 nm process.

What you need to know

Intel Arc A770 is a desktop gpu with a thin public spec record.

Intel Arc A770 launched in July 1, 2022. 16 GB GDDR6 is the frame buffer on the reference sheet. Treat the spec table as the facts. Missing fields stay Unknown.

Still good?: For lighter settings and older games
Product age: 4 years old
Upgrade pressure: Low to moderate

Feex says

If games feel slow on this card, I would check the CPU, RAM, and the driver before I shop for the next series.

What this hardware means today

Age and usefulness are not the same number. This page keeps them separate.

Performance today: Good. Still strong for 1440p and creator work when the rest of the PC keeps up.
Product age 4 years old: Aging. Launched July 1, 2022. Newer series exist. That does not make this card unusable by itself.
Support status: Supported. Driver support depends on the vendor package for this generation.
Upgrade pressure: Low to moderate. Upgrade pressure comes from native 4K, VRAM-heavy titles, or wanting current-generation features.

Where does it sit?

Xe-HPG sits in its vendor generation. Board partners still pick the cooler.

Xe-HPG

Performance context

These are qualitative readings, not a fake 8.7 out of 10. Resolution, settings, and the CPU still win.

1080p gaming: Good

More GPU than most 1080p setups need if this card is in the current or previous generation.

1440p gaming: Good

This is the job many desktop cards in this class were sold for.

4K gaming: Limited

Native 4K is where memory size and the memory bus show up. Upscaling changes the picture.

Creator work: Good

GPU acceleration in apps is real. Large timelines still want more VRAM than a thin card has.

Efficiency: Good

The sheet lists 225 W board power. Partner cards can differ.

Should you upgrade?

Probably not if the card is not the bottleneck.

Upgrade makes more sense if

Current games are GPU-bound at your resolution and settings
Current games are GPU-bound at your resolution and settings
You need current-generation features this card does not have
Your present GPU is a much older generation and this would be a real step up

Upgrade makes less sense if

You already play at a resolution this card can feed
The CPU, RAM, or storage is what actually stalls the machine
You are shopping for a newer card in the same class to fix a software or driver problem

Specifications

Figures below follow Intel's public reference sheet. Partner cards can raise clocks and change coolers, connectors, and outputs. The Feex Hardware Database fills fields the vendor page does not publish. Fields without a recorded value are omitted.

Graphics processor

Intel Arc A770 is built on Xe-HPG using a 6 nm process.

Intel Arc A770 specifications: Graphics processor
Manufacturer	Intel
Family	Arc
Architecture	Xe-HPG
Manufacturing process	6 nm
Transistors	21,000 million
Die size	406 mm²
Integrated	No
Mobile	No
Workstation	No
Segment	Desktop

Shader configuration

Intel Arc A770 lists 4096 shading units on this sheet.

Intel Arc A770 specifications: Shader configuration
Shading units	4096
Compute units	32
Texture mapping units	256
Render output units	128
Ray tracing cores	32
Tensor / AI cores	512

Clock speeds

Base clock is 2.1 GHz. Boost reaches 2.4 GHz.

Intel Arc A770 specifications: Clock speeds
Base clock	2.1 GHz
Boost clock	2.4 GHz

Memory

Intel Arc A770 addresses 16 GB.

Intel Arc A770 specifications: Memory
Memory type	GDDR6
Memory size	16 GB
Memory interface	256-bit
Memory bandwidth	512 GB/s
Memory clock	2.0 GHz

Power and board

Intel Arc A770 lists 225 W board power.

Intel Arc A770 specifications: Power and board
Board power	225 W
Bus	PCIe 4.0 x16

Market

Intel Arc A770 launched July 1, 2022.

Intel Arc A770 specifications: Market
Launch date	July 1, 2022

Independent scores

These are third-party benchmark figures stored in the Feex Hardware Database. They are not Feex measurements.

Intel Arc A770 specifications: Independent scores
PassMark G3D	13,351 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement.
PassMark G2D	761 PassMark figure via PassMark Videocard Benchmark. Not a Feex measurement.

Compatibility

Compatibility
Slot	PCIe 4.0 x16
Power	225 W on the sheet. The power plug is a partner-card detail.
Case	Length, thickness, and slot count vary by partner cooler. Measure the case, not the SKU name.

The SKU name is not a cooler, a length, or a power plug. Read the exact partner card before you buy or install.

Seat power connectors fully. A loose high-power plug can overheat. That is a connector problem, not a reason to assume the GPU is dead.

Driver packages from a previous GPU are a common crash source. Clean-install the current vendor package before you replace hardware.

No display after install

Plug the monitor into the GPU outputs, not the motherboard, unless this is an integrated part. A black screen with fans spinning is often a power plug, a seated PCIe card, or the display cable.

Driver installs, then games crash

Use the vendor package that matches this generation. A leftover driver from a previous GPU is a common cause.
