Intel Atom x5-E8000
Also called intel atom x5-e8000, atom x5-e8000, e8000, atom-x5-e8000
Intel Atom X embedded processor on Braswell, with 4 cores and 4 threads and 2 MB L3 at 5 W TDP on a 14 nm process addressing up to 8 GB and Intel HD Graphics for Intel Celeron Processor N3000 Series.
What you need to know
Intel Atom x5-E8000 is a legacy embedded cpu.
Intel Atom x5-E8000 launched in January 1, 2016., It has 4 cores and 4 threads on Braswell, dropping into the FCBGA1170 socket. Treat the spec table as the facts. Age alone does not tell you to throw it out.
- Still good?
- Only if the workload is light
- Product age
- 10 years old
- Upgrade pressure
- Moderate
What this hardware means today
Age and usefulness are not the same number. This page keeps them separate.
- Performance today
- Average. Average for the class when RAM, storage, and the GPU keep up.
- Product age 10 years old
- Legacy. Launched January 1, 2016. Newer platforms exist. That does not make this chip unusable by itself.
- Support status
- Supported. Current Windows and current applications still run on this class of CPU. Platform BIOS support depends on the motherboard or laptop vendor.
- Upgrade pressure
- Moderate. Upgrade pressure comes from platform features and specific CPU-bound work, not from the chip being unusable.
Where does it sit?
Braswell sits on Intel's recent Core timeline. Later desktop branding moved toward Core Ultra.
Performance context
These are qualitative readings, not a fake 8.7 out of 10. Workload still wins.
Gaming: Good
Playable in lighter titles. A weak GPU will hide whatever this chip still has.
Productivity: Average
4 cores cover office, browser, and compile work in this class.
Multithreaded workloads: Average
4 threads. Heavy encodes still scale further on higher-core parts.
General use: Good
Everyday Windows use is not where most people notice this SKU first.
Efficiency: Good
Rated 5 W base power. That is a platform number, not a promise about your cooler.
Should you upgrade?
Probably not based on CPU performance alone.
Upgrade makes more sense if
- Your workload is strongly CPU limited
- You need a newer platform for memory, I/O, or chipset features
- You need substantially more multicore performance
- You need newer connectivity that your current board cannot offer
Upgrade makes less sense if
- The GPU is the real bottleneck
- Current applications are already responsive
- The CPU rarely limits your workload
Specifications
Figures below follow the Feex Hardware Database record for this SKU. Fields without a recorded value are omitted.
Processor
Intel Atom x5-E8000 is built on Braswell using a 14 nm process.
| Manufacturer | Intel |
|---|---|
| Family | Atom X |
| Architecture | Braswell |
| Generation | Intel Atom Processor X Series |
| Manufacturing process | 14 nm |
| Segment | Embedded |
Cores and threads
Intel Atom x5-E8000 has 4 cores and 4 threads.
| Cores | 4 |
|---|---|
| Threads | 4 |
Clock speeds
Base clock is 1.04 GHz.
| Base frequency | 1.04 GHz |
|---|
Cache
Cache on this sheet is 2 MB L3.
| L3 cache | 2 MB |
|---|---|
| Total cache | 2 MB |
Memory
Intel Atom x5-E8000 addresses 8 GB across 2 memory channels.
| Max capacity | 8 GB |
|---|---|
| Channels | 2 |
Package and power
Intel Atom x5-E8000 uses the FCBGA1170 socket and a 5 W TDP.
| Socket | FCBGA1170 |
|---|---|
| TDP | 5 W |
| PCIe | Revision 2.0, 4 lanes |
Integrated graphics
Intel Atom x5-E8000 includes Intel HD Graphics for Intel Celeron Processor N3000 Series.
| Integrated graphics | Intel HD Graphics for Intel Celeron Processor N3000 Series |
|---|
Market
Intel Atom x5-E8000 launched January 1, 2016 at USD 18 (suggested price at launch).
| Launch date | January 1, 2016 |
|---|---|
| Launch MSRP | USD 18 (suggested price at launch) |
| Model | E8000 |
Features
Intel Atom x5-E8000 records 1 instruction sets on this sheet.
| Instruction sets | 64-bit (x86-64) |
|---|---|
| Security | Hardware RNG |
| Virtualization | Extended Page Tables (EPT)VT-x (Hardware Virtualization) |
Compatibility
| Socket | FCBGA1170 |
|---|---|
| Board | A shared socket is not automatic compatibility. Check the motherboard CPU list and BIOS revision. |
| Memory | up to 8 GB |
| Graphics | Intel HD Graphics for Intel Celeron Processor N3000 Series |
A shared socket is not automatic compatibility. Boards often need a BIOS update before a newer chip in the same socket will post.
Cooler clearance, VRM quality, and power limits matter as much as the socket name.
Read the memory list on the board. The CPU can list more standards than one motherboard will accept.
No post after a CPU swap
Clear CMOS only after you confirm the board list includes this SKU and the BIOS is new enough. A supported name on a box is not the same as a flashed board.
Sources and verification
Reviewed by Feex editorial. Last verified August 2026 Status: Partially Verified. How we research.
- Feex Hardware Database · Specification source used for this sheet. CC BY 4.0.

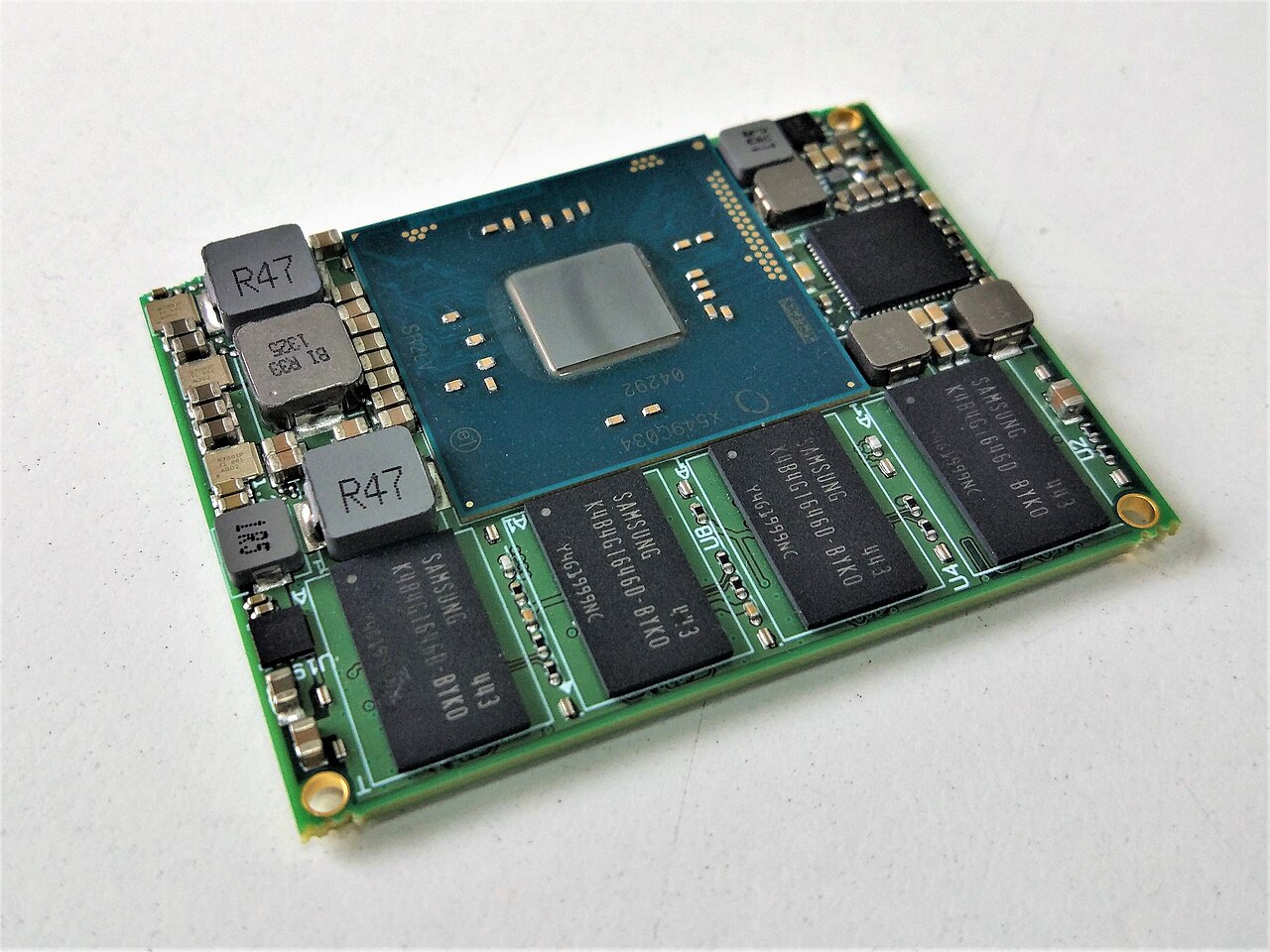

- Photo: Jakednb · CC BY-SA 4.0
